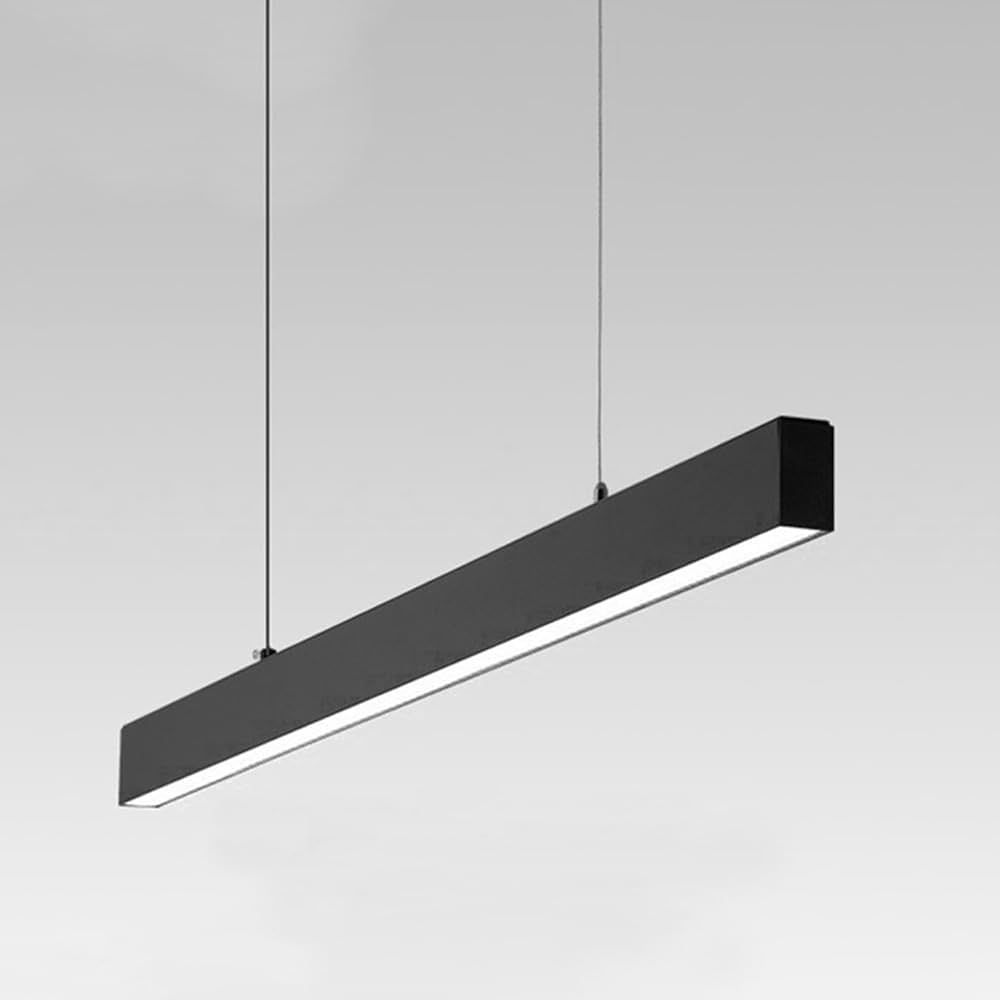

Pendant / Surface Linear
Pendant or surface mounted linear
LNR1S/114
Body
Housing is made of Extruded Aluminum profile.
Diffuser is made of LED Opal which made
made especially for LED lighting with High
transmission degree.
To ensure high performance and Excellent
Homogeneity Body finish is Electrostatic Painting RAL9005
Dimensions L1140mmxH80mmXW60mm
IP Rating IP40.
Custom Color and length is available.
Electric Features
Input Voltage 220V -240V/ 50-60Hz.
Power consumption 33W / PF>0.95.
Lumen output 2100lm -Efficiency up to 140 lm/W.
LED source, Power Supply is European Brand.
Long lifetime 50000Hrs / CRI 80, 90.
CCT 3000K , 4000K , 5700K , 6000K , 6500K.
Suitable for Emergency operation.
Suitable for external on/off or DALI power supply units.
Operation ambient Temperature is -20-40.
Cable between the luminaire and the power supply unit with plug connector.
Warranty 3Years.
