SMD Downlight 21W

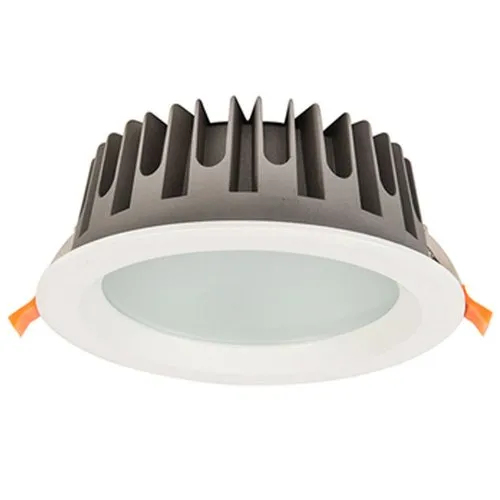

Recessed LED SMD Downlight 21W
LD19R
Body
Housing is made of Aluminum Die-Cast .
Body finish is Electrostatic Painting Ral9016 / Ral7035.
Diffuser is Opal made of PMMA.
Reflector is made of pure Anodized Aluminum.
Diameter 226mmx65mm Cutout 195mm.
IP Rating IP54 - IP65 Upon Request .
Custom Color is available.
Electric Features
Input Voltage 220V -240V/ 50-60Hz .
Power consumption 21W / PF>0.95 .Lumen output 3800lm- 4600lm -Efficiency up to 150 lm/W.
LED source, Power Supply is European Brand.
Long life time 50000Hrs / CRI 80, 90.
CCT 3000K , 4000K , 5700K , 6000K , 6500K.
Suitable for Emergency operation.
Suitable for external on/off or DALI power supply units.
Operation ambient Temperature is -20-40.
Cable between the luminaire and the power supply unit with plug connector.
Warranty 3Years.
