SMD Downlight 12W-17W

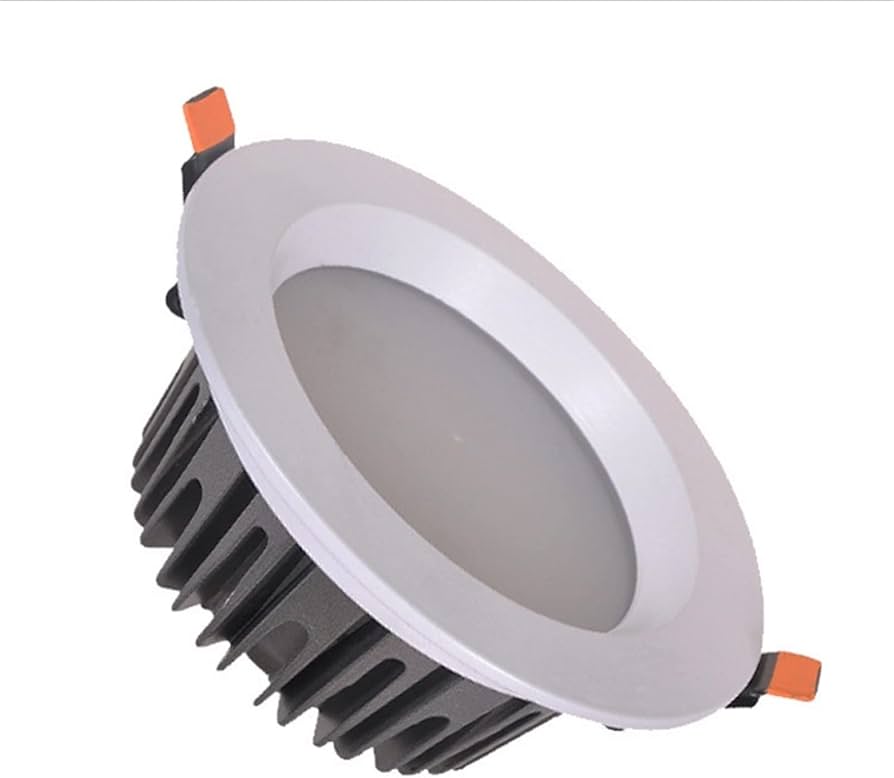

Recessed LED SMD Downlight 12W-17W
LD14RM2I
Body
Housing is made of Aluminum Die-Cast.
Body finish is Electrostatic Painting Ral9016 / Ral7035.
Diffuser is Opal made of PMMA.
Reflector is made of pure Anodized Aluminum.
Diameter 165mmx70mm Cutout 145mm.
IP Rating IP54 - IP65 Upon Request.
Custom Color is available.
Electric Features
Input Voltage 220V -240V/ 50-60Hz.
Power consumption 12W to 17W / PF>0.95 .
Lumen output 1175lm- 1470lm -Efficiency up to 150 lm/W.
LED source, Power Supply is European Brand.
Long life time 50000Hrs / CRI 80, 90.
CCT 3000K , 4000K , 5700K , 6000K , 6500K.
Suitable for Emergency operation.
Suitable for external on/off or DALI power supply units.
Operation ambient Temperature is -20-40.
Cable between the luminaire and the power supply unit with plug connector.
Warranty 3Years.
